Spiral Joint Gasket

The spiral wound gaskets are widely used in moderate to critical services in various industries. They are most suitable for the application, where the gaskets subject to extreme temperature or pressure cycling, shock or vibration. These gaskets have the best resistance property when compare with other metal and asbestos type gaskets.

Spiral joint gaskets are used where no gasket centering or compression limiting device is required. Also used in metal-to-metal joints and have a good tolerance for flange surface finish irregularities. Sealing action of the gasket is due to the flow of metal spiral and asbestos fiber as a result of gasket compression.

Spiral-wound gaskets are used for any circular or moderately non-circular applications where an approximate compressed thickness of either 3/32″ or 1/8″ can be tolerated. Excellent performance in joints restricting compression is provided since their resiliency will compensate for modest separation.

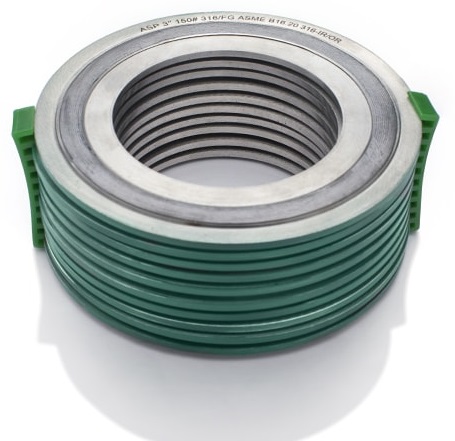

Type CGI (Gasket with Centering Ring & Inner Ring)

• Solid metallic inner & outer ring
• Suitable for high pressure and temperature     applications
• Standard spiral wound gasket for raised face     applications
• Prevents turbulence and erosion damage to flange
• Prevents damage to the gasket bore and inner     windings
• Inner ring acts as a heat shield and as a corrosion     barrier
• Wide choice of materials for filler and metal strip
• General and critical duties

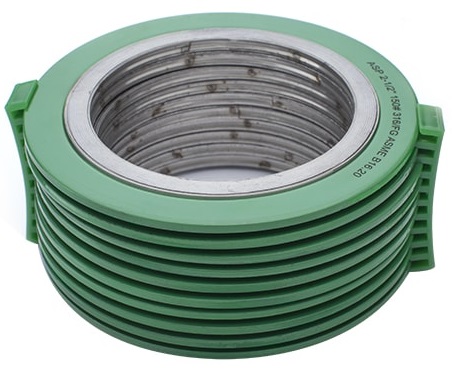

Type CG (Gasket with Centering Ring)

• Solid metallic outer ring used as a centering device     and compression stop
• Used mainly on raised face and flat face flanges
• Wide choice of materials for filler and metal strip
• General duties

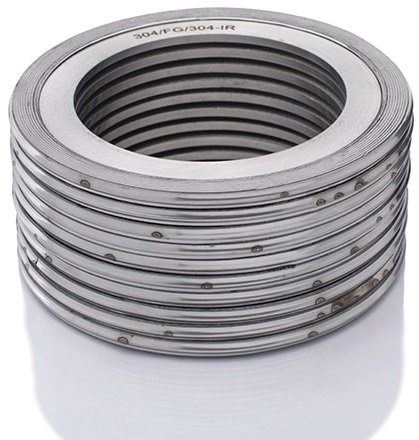

Type GI (Gasket with Inner Ring)

• Solid metallic inner ring
• High pressure & high temperature capability
• Male to female flanges in vessels, valves and pumps
• Wide choice of materials for filler and metal strip
• General and critical duties

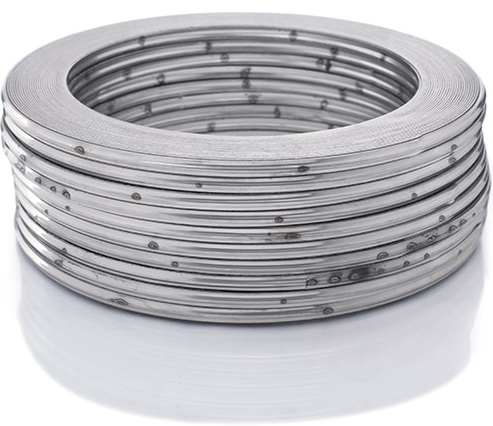

Type G (Gasket only)

• Wide choice of materials for filler and metallic strip
• Suitable for high pressure and temperature     applications
• Recommended flanges are tongue & groove, male to     female and flat face to recess in vessels, valves and     pumps
• General and critical duties

Application Industries

We offer a broad range of Stainless Steel ,high nickel alloys & other material product through a worldwide network of stock-keeping branches. These material is use in various industries like :

Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
